| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TYF |
| 証明: | LM-80 Rohs |
| モデル番号: | TX1-1917S-1312BB |
| 最小注文数量: | 500 |
| 価格: | 2.2USD/PCS |
| ハイライト: | 30W high power LED COB,36V high lumens COB LED,KSF phosphor LED chip |
||
|---|---|---|---|

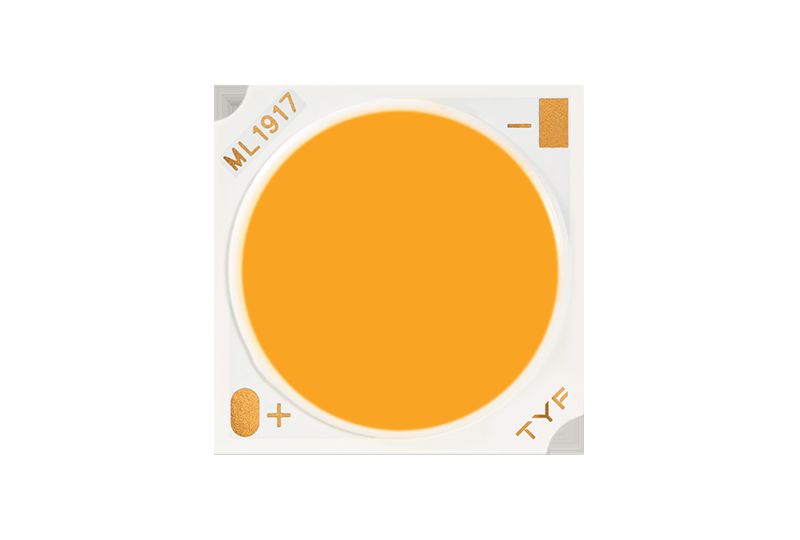

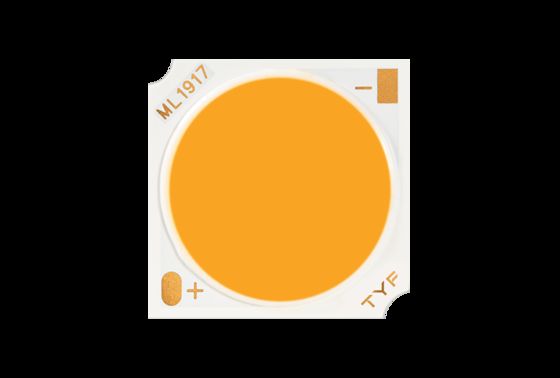

The TYF COB package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.
| Limiting power | Standard 30.0W / Max 45.0 W |
| Forward Voltage (VF) | 34-38 V |
| Forward Current | Standard 830mA / Max 1150 mA |
| Operating Temperature | -40°C to 85°C |
| Junction Temperature | 125°C |
| Storage Temperature | -40°C to 105°C |
| ESD Sensitivity | 2000 V |
| Reverse Voltage | Reverse testing is not allowed |
| Reverse Current | 5 uA |
| Soldering Temperature | 350°C / 3-5 sec. |
