| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TYF |
| 証明: | LM-80 Rohs |
| モデル番号: | TS1-H50YL-0801BC |
| 最小注文数量: | 2000 |
| 価格: | 0.092-0.1USD/PCS |
| ハイライト: | 24V 5050 SMD LED chip,high power 5050 LED,3000K 5050 LED chip |
||
|---|---|---|---|

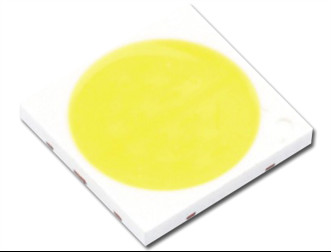

The TYF 5050 package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.
| Parameter | Value |
|---|---|
| Limiting power | 3.0 W |
| Forward Current | IF ≦125mA |
| Operating Temperature | -40ºC To +85ºC |
| Junction Temperature | Tj 125°C |
| Storage Temperature | -40ºC To +105ºC |
| ESD Sensitivity | 2,000V HBM |
| Reverse Voltage | Reverse testing is not allowed |
| Reverse Current | VR=5V 1uA |
| Soldering Temperature | 260ºC/3-5sec. |
| Moisture Sensitivity Rating | MSR MSL3 ℃/RH/H |
